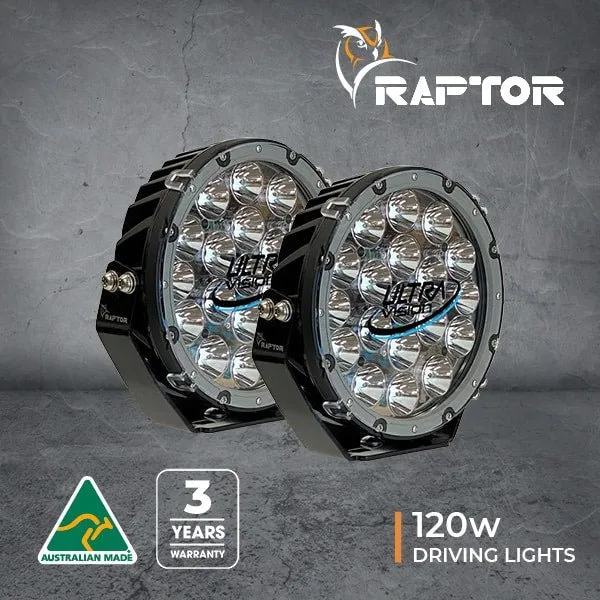

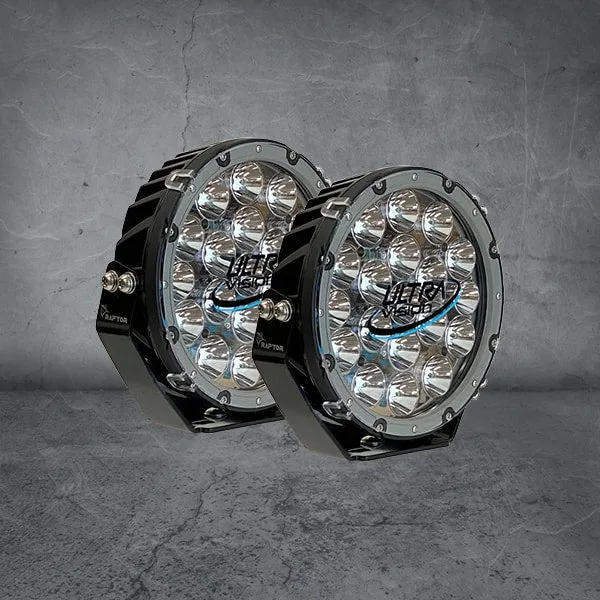

The RAPTOR LED driving lights feature a high pressure die-cast aluminium housing and high impact polycarbonate lens. The superior optic designs gives a combination beam with both good distance and width from one lamp type.

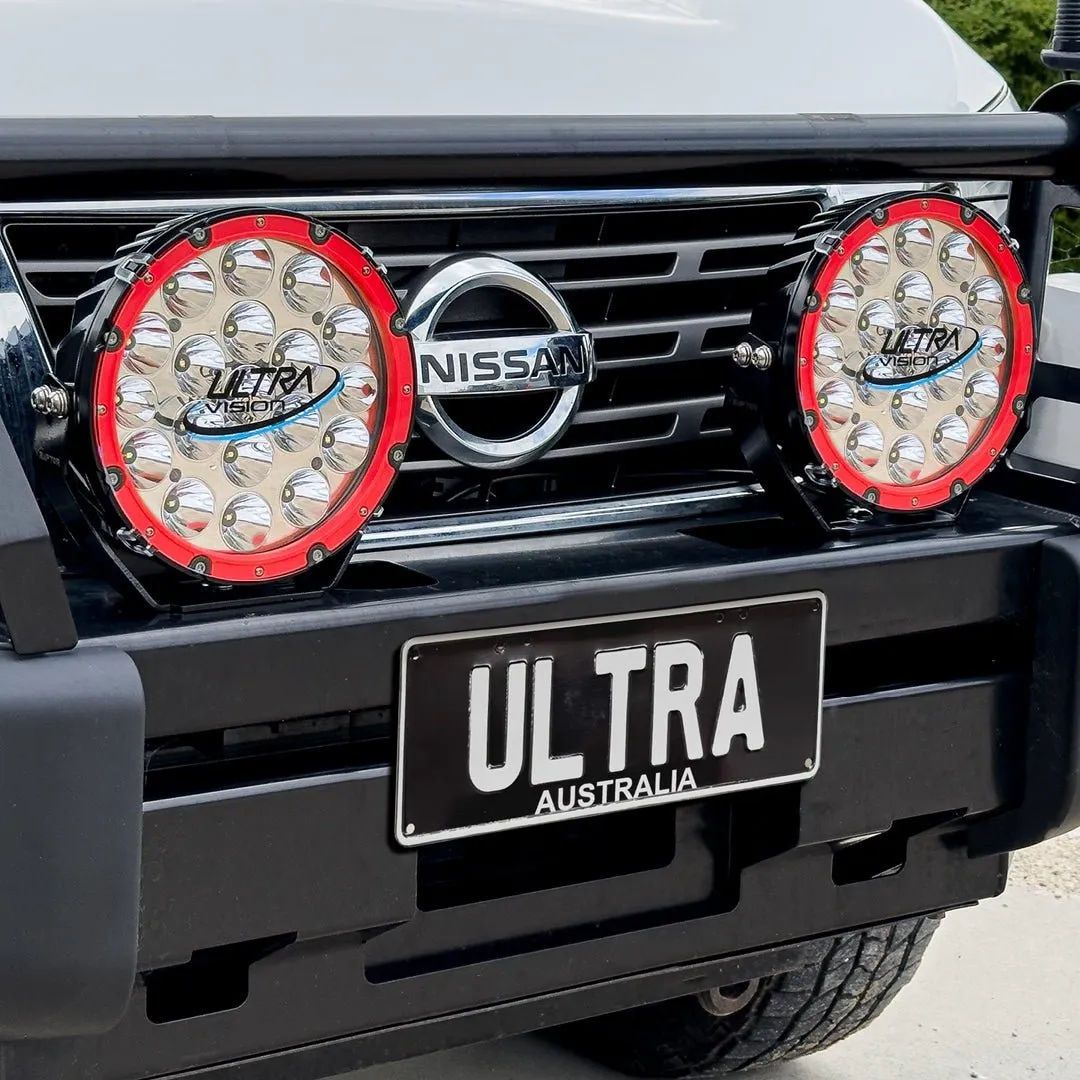

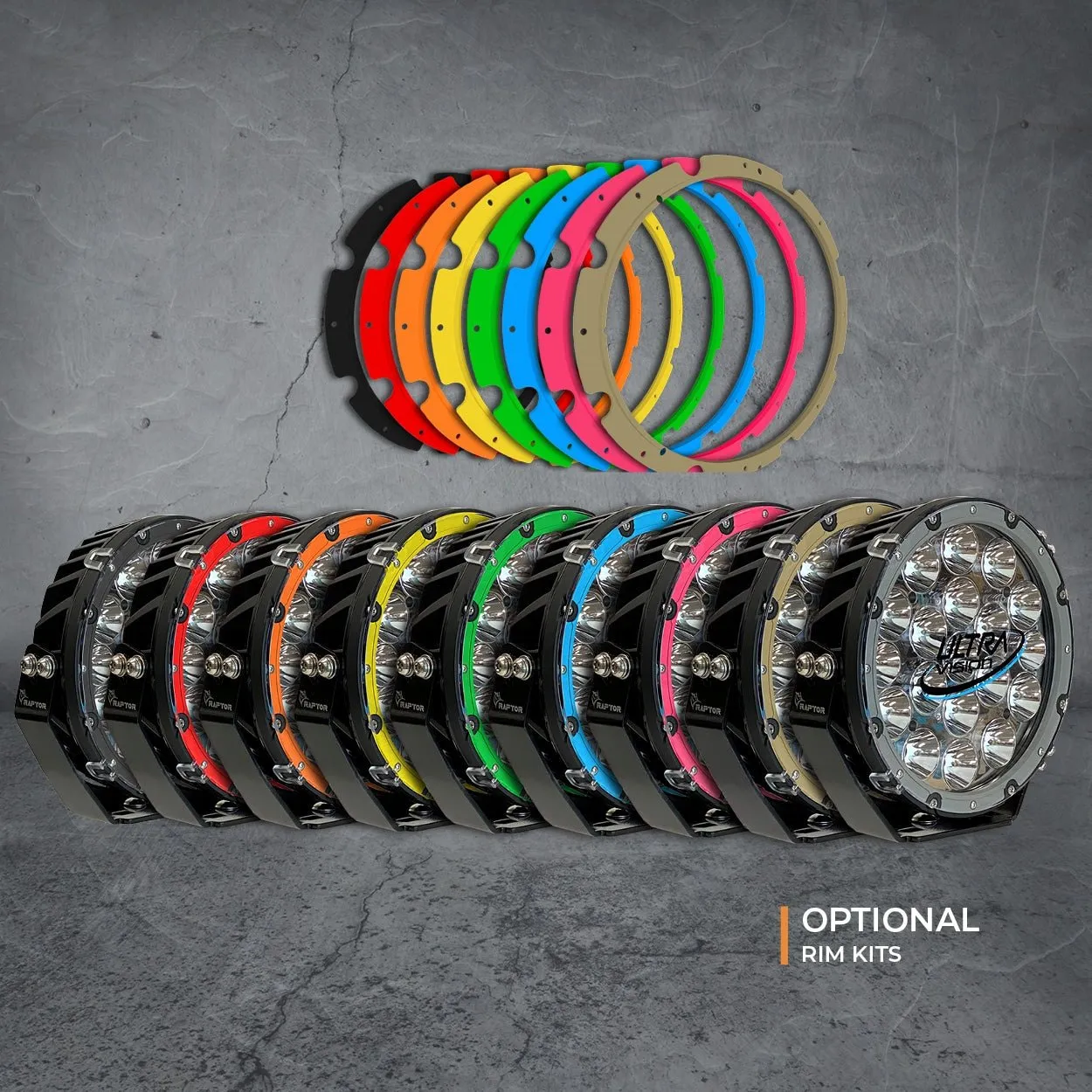

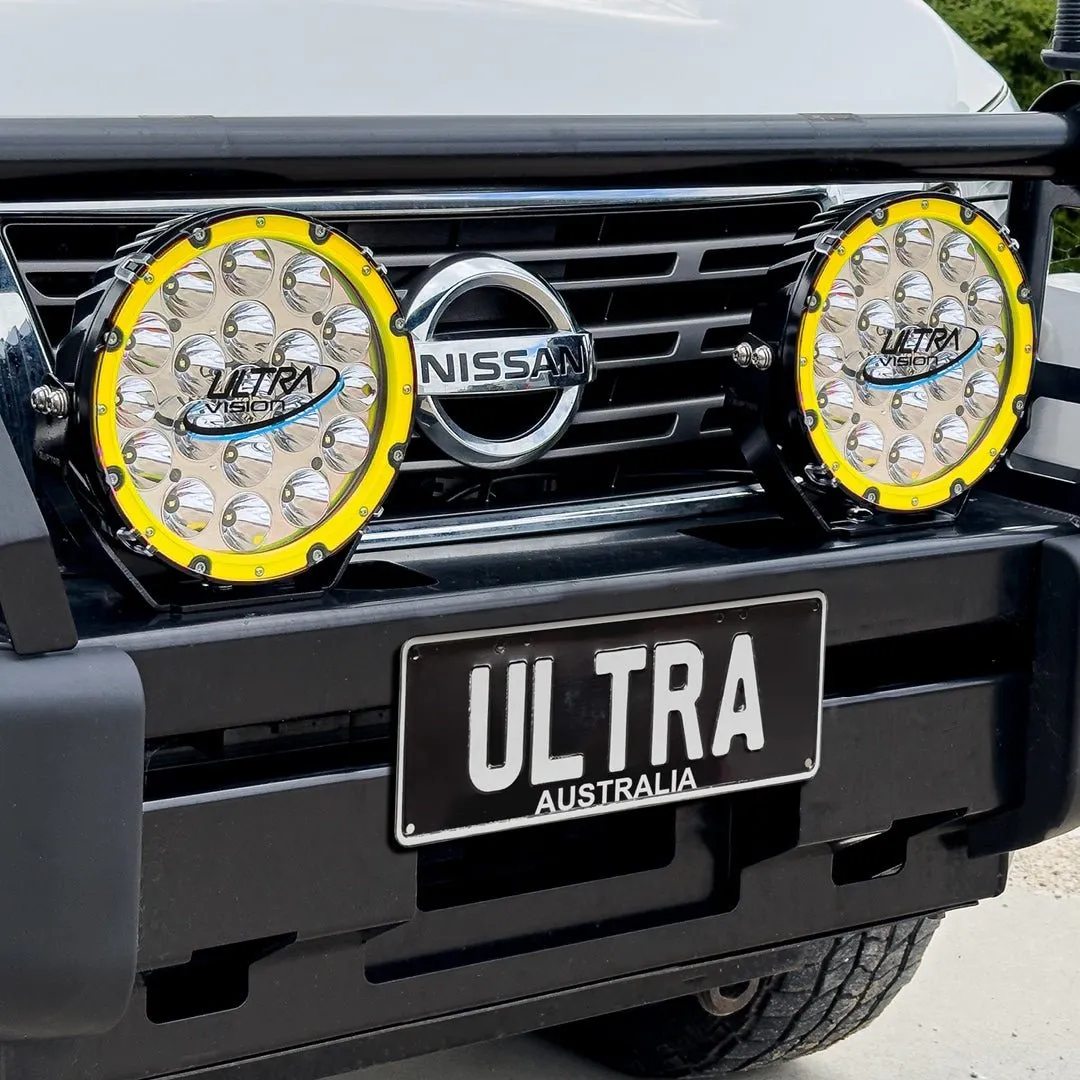

All RAPTOR driving lights come with a grey rim as standard, along with a protective lens cover, easy-adjust mounting bracket wiring harness and stainless steel brackets. You also have the choice to find your colour and make your lights your own with our optional . Choose from 8 colours to match and enhance the colour of your vehicle, and get your own unique look.
To make sure you get the right option for your own driving comfort, the lamps are available with either 4000k or 5700k Colour Temperature.
All Raptor products are manufactured in Australia and covered by a 3-year warranty, adding total peace of mind.

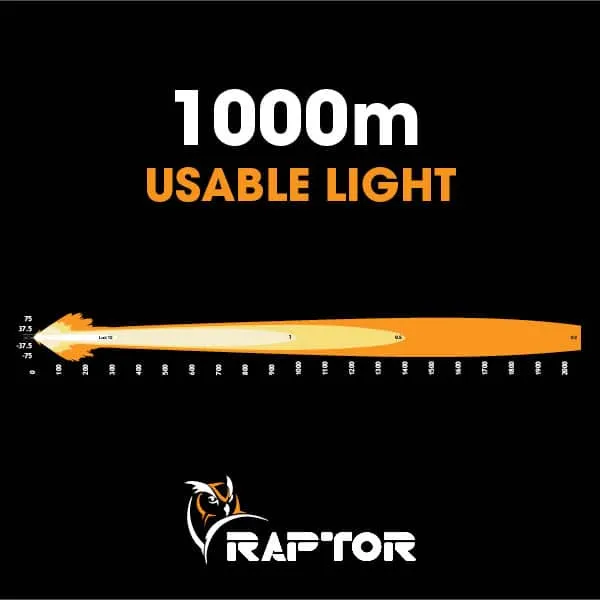

Beam Patterns
| SPECIFICATIONS | Raptor 120W | |
|---|---|---|
| Wattage | 120W (per lamp) | |
| Light Source | 19 x 6W LED’s (per lamp) | |
| Light Output – Raw | 29,400 Lumens (per pair) | |
| Light Output – Effective | 24,818 Lumens (per pair) | |
| Voltage | 9-36V | |
| Current Draw | 17.6A @ 13.5V (per pair) | |
| Operating Temperature | -40°C to 80°C | |
| Waterproof rating | IP68 | |
| Connector Type | 2 Pin Heavy Duty Deutsch | |
| Housing | Die-Cast aluminium | |
| Lens Construction | Polycarbonate | |
| Bracket | Stainless Steel | |
| Colour Temperature | 4000K or 5700K | |
| Lifespan | 50,000 Hours | |

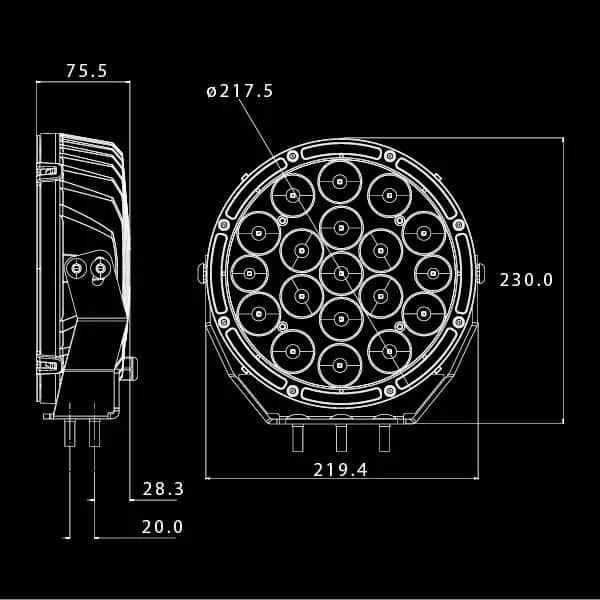

| Diameter | 220mm | |
| Net Weight | 2.7kg (per lamp) | |
| Mounting Suitable | Stainless Steel Bracket | |
| Beams Available | Combo | |
| Warranty | 3 Years | |
| Wiring Harness included | Yes | |
| PART NUMBERS | ||
| Raptor 120W 4000K | RAP120DL4V2/PR | |
| Raptor 120W 5700K | RAP120DLV2/PR | |
